LS2 Report: consolidating the energy extraction systems of LHC superconducting magnet circuits

May 14, 2019

In the LHC, 1232 superconducting dipole magnets and 392 quadrupole magnets guide and focus the beams around the accelerator’s 27-kilometre ring, which is divided into eight sectors. These magnets operate at very low temperatures – 1.9 K or −271.3 °C – where even a tiny amount of energy released inside a magnet can warm its windings to above the critical temperature, causing the loss of superconductivity: this is called a quench. When this happens, the energy stored in the affected magnet has to be safely extracted in a short time to avoid damage to the magnet coil.

To do so, two protection elements are activated: at the level of the quenching magnet, a diode diverts the current into a parallel by-pass circuit in less than a second; at the level of the circuit, 13 kA energy extraction systems absorb the energy of the whole magnet circuit in a few minutes. There are equivalent extraction systems installed for about 200 corrector circuits with currents up to 600 A.

“In the framework of a long-lasting and fruitful collaboration between CERN and the Russian Federation, energy extraction systems for quench protection of the LHC superconducting magnets were designed in close partnership with two Russian institutes, the NRC Kurchatov-IHEP Institute in Protvino for the 13 kA systems and the Budker Institute in Novosibirsk for the 600 A systems. Russian industry was involved in the manufacturing of the parts of these systems,” explains Félix Rodríguez Mateos, leader of the Electrical Engineering (EE) section in the Machine Protection and Electrical Integrity (MPE) group of CERN’s Technology department.

With a wealth of expertise and know-how, the Russian teams have continuously provided invaluable support to the MPE group. “Our Russian colleagues come to CERN for every year-end technical stop (YETS) and long shutdown to help us perform preventive maintenance and upgrade activities on the energy extraction systems,” says Rodríguez Mateos.

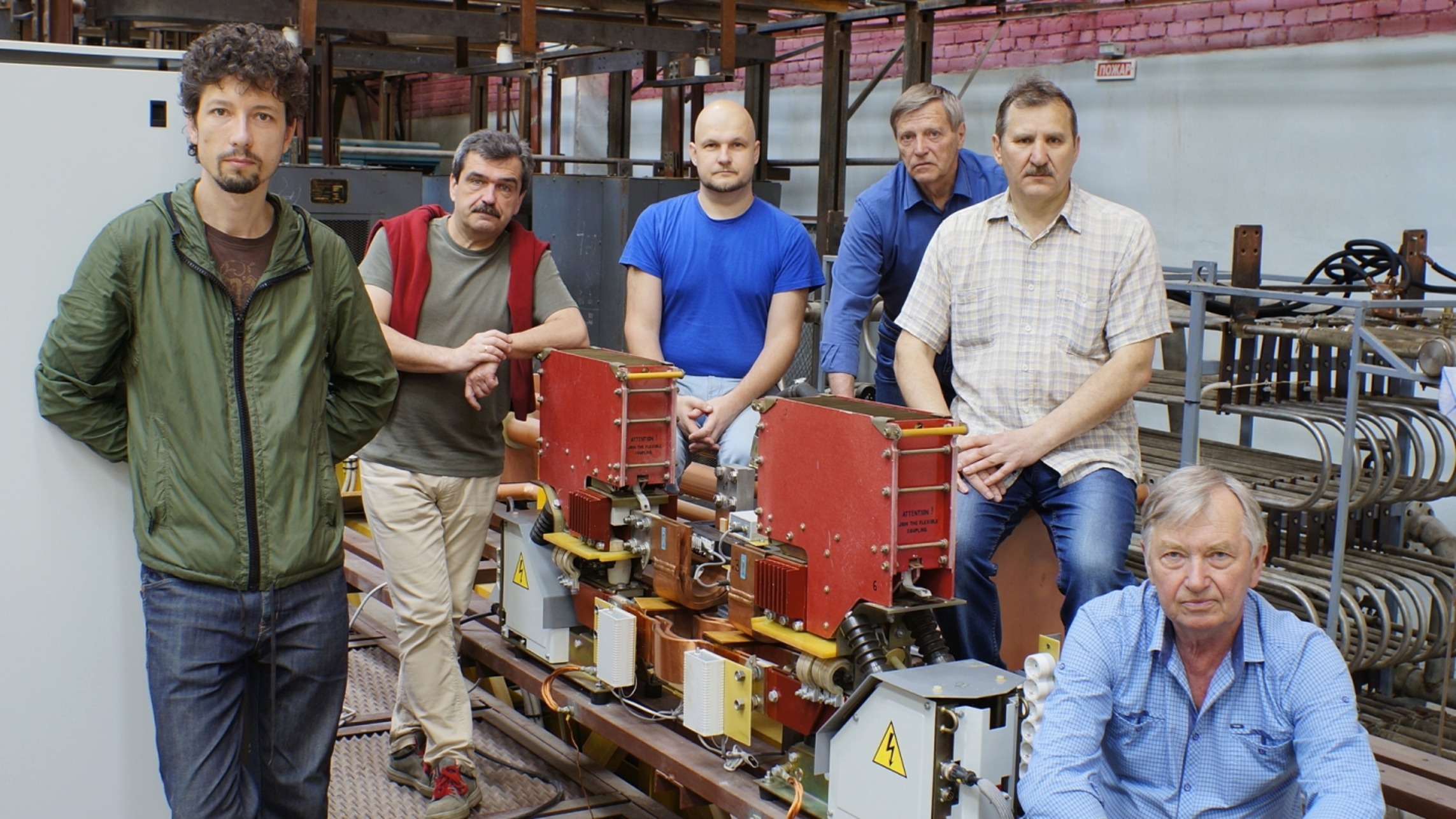

During LS2, an extensive maintenance campaign is being performed on the 13 kA systems, which already count 10 years of successful operation in the LHC. “We are currently replacing an element, the arcing contact, in each one of the 256 electromechanical switches of the energy extraction systems to ensure their continuous reliable operation throughout the next runs,” adds Rodríguez Mateos. “In February, we fully replaced 32 switches at Point 8 of the accelerator in anticipation of consolidation for the future HL-LHC.”

During LS2, the Electrical Engineering section is involved in many other activities that will be the subject of future articles.
